Building a city based on Venice

Building a city based on Venice

Supported by (Turn Off)

Project Blog by frederique555

Recommendations: 102

About the Project

For this project I am building a Venice like city. Mainly for the Carnevale game but I trying to make it so it can be used in different games. I will somethings forget some steps but I will try to make it so clear as possible.

This Project is Active

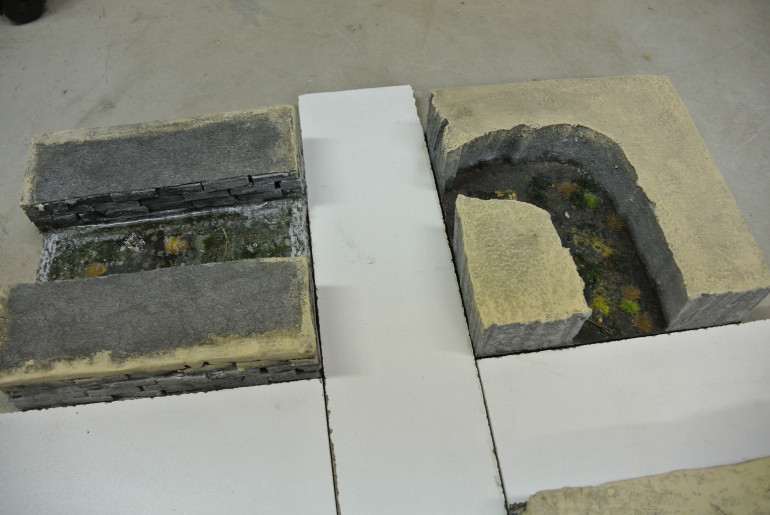

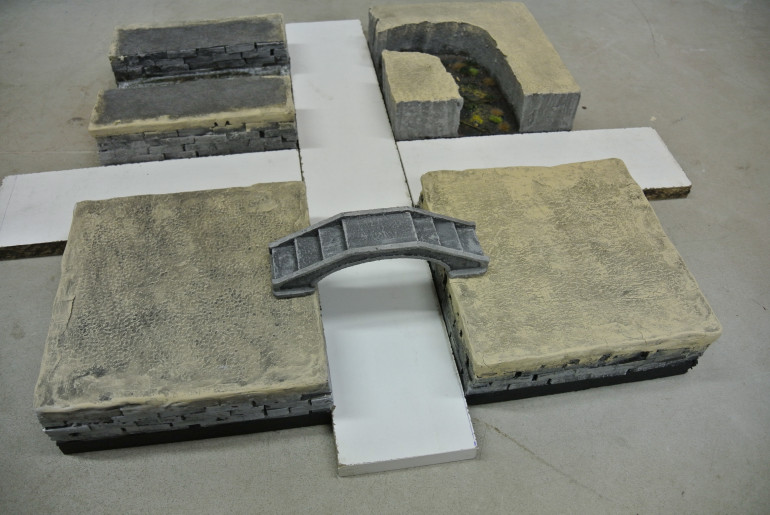

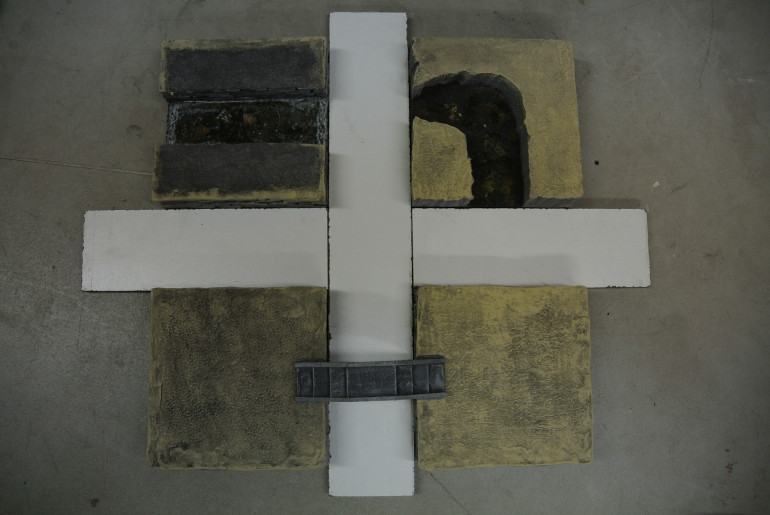

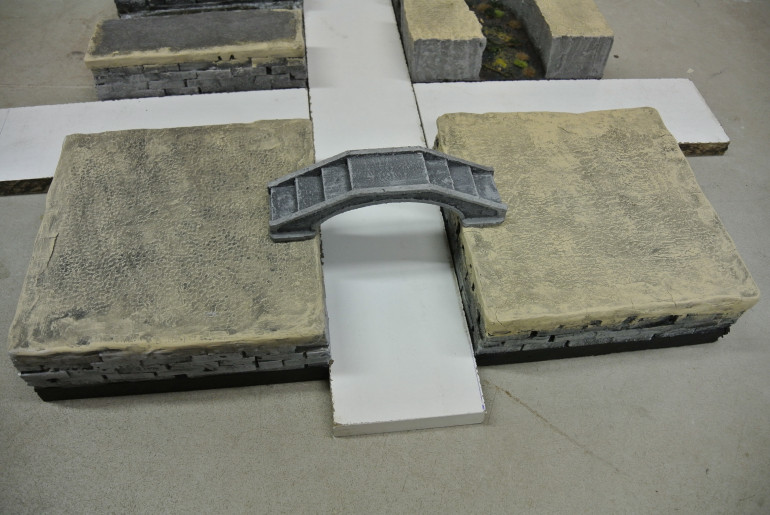

Progress so far...

Tutoring 0
Skill 1
Idea 1
No Comments
Progress so far...
Progress so far...
Progress so far...
Progress so far...

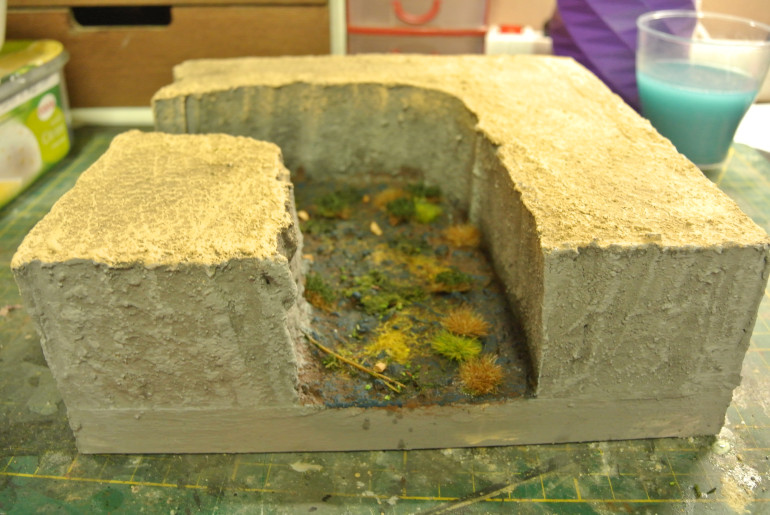

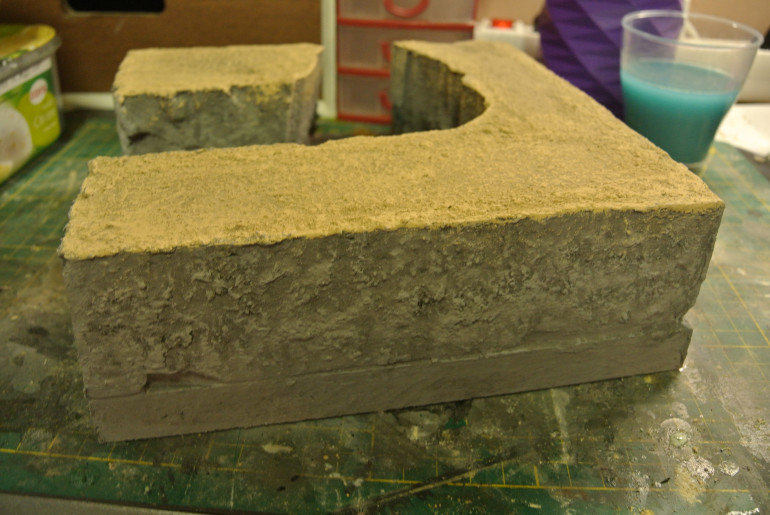

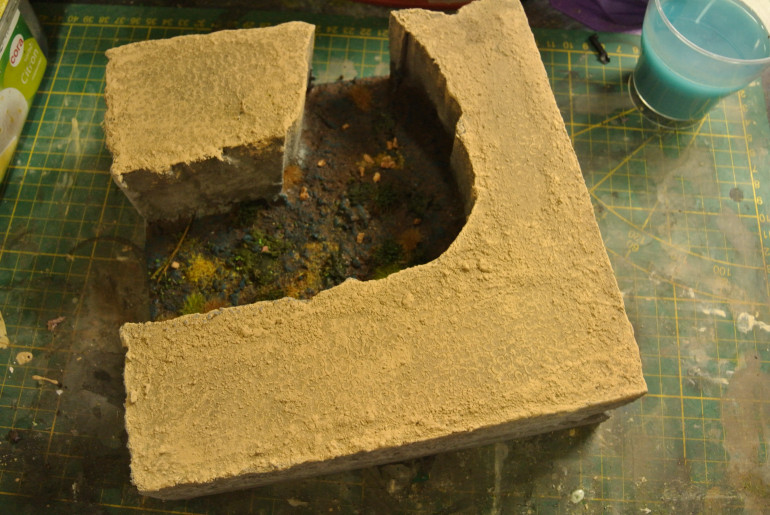

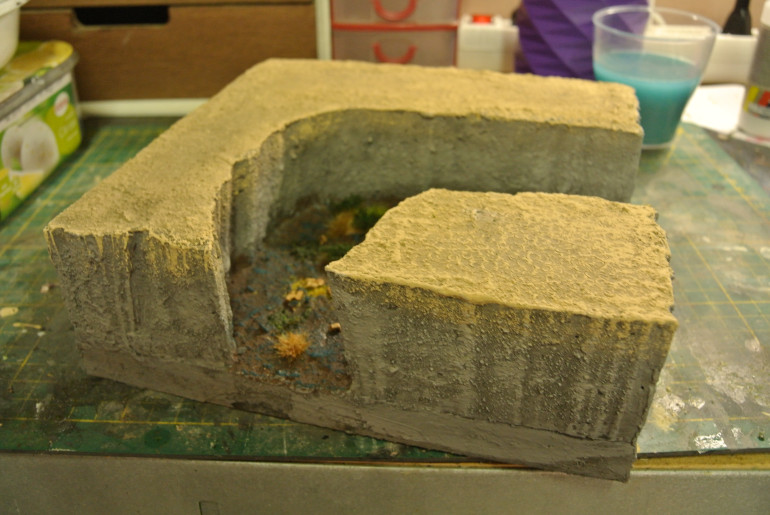

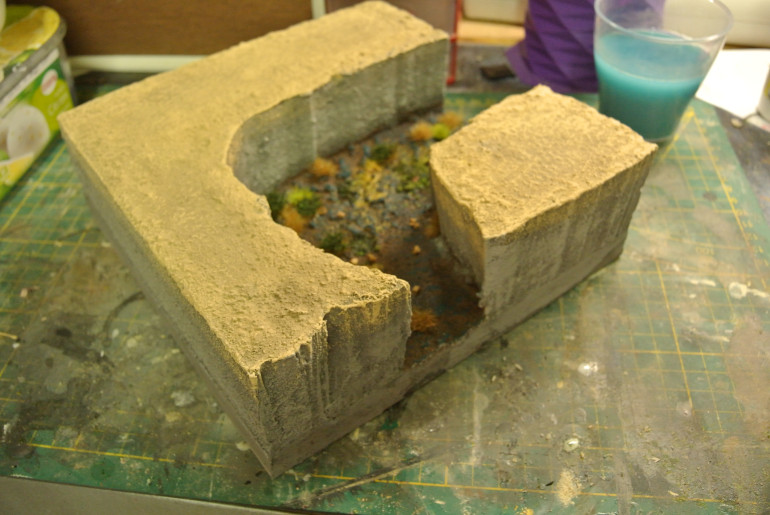

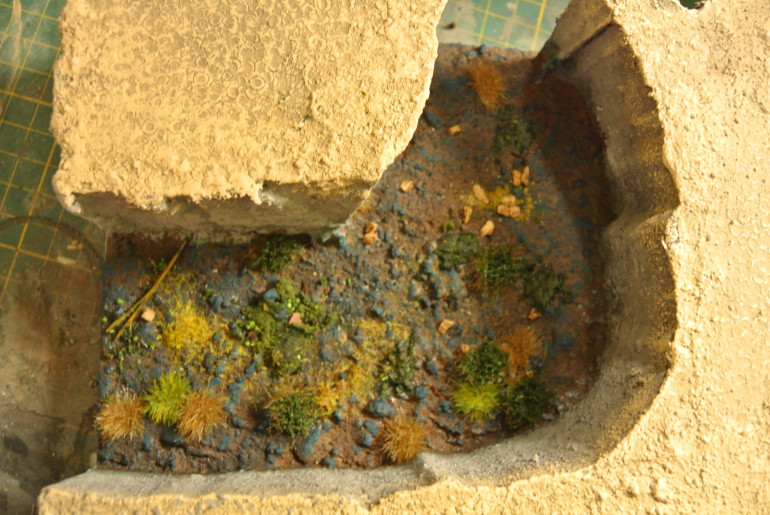

Drybrushed and basing the river

Tutoring 1
Skill 2
Idea 3
No Comments
Drybrushed and basing the river
Drybrushed and basing the river
Drybrushed and basing the river
Drybrushed and basing the river
Drybrushed and basing the river
Drybrushed and basing the river

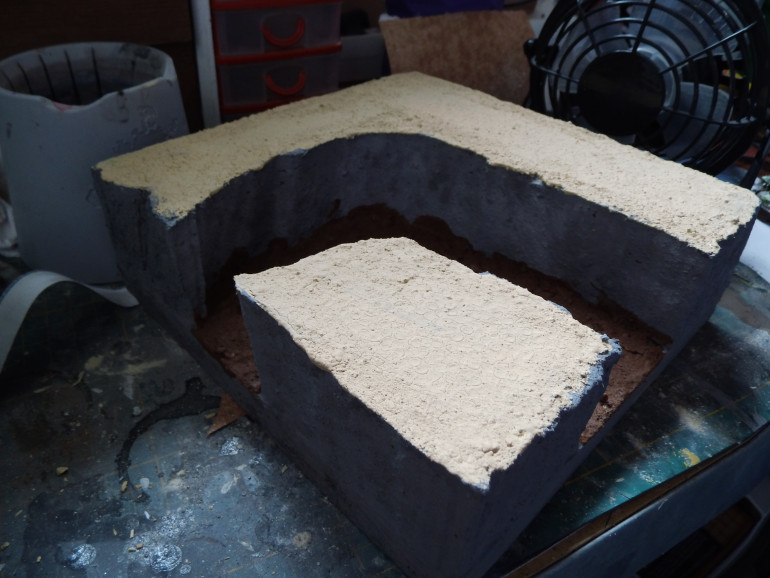

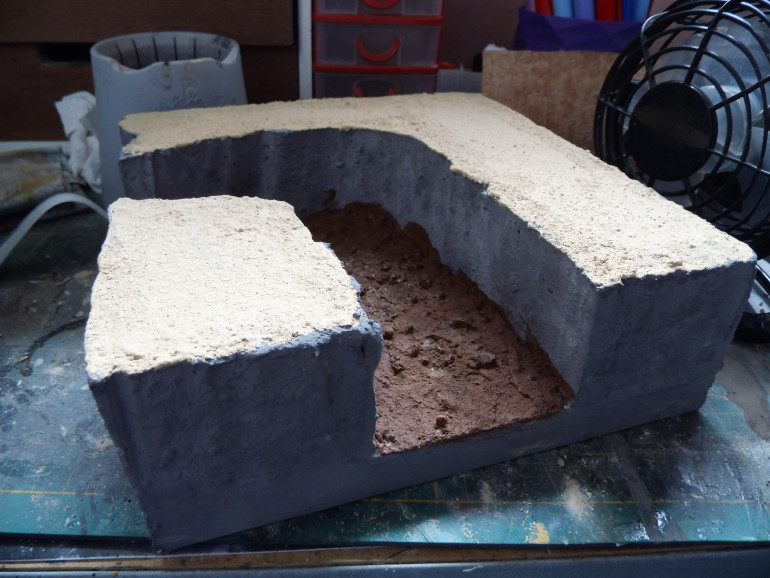

painted the base colors

Tutoring 1
Skill 2
Idea 3
No Comments

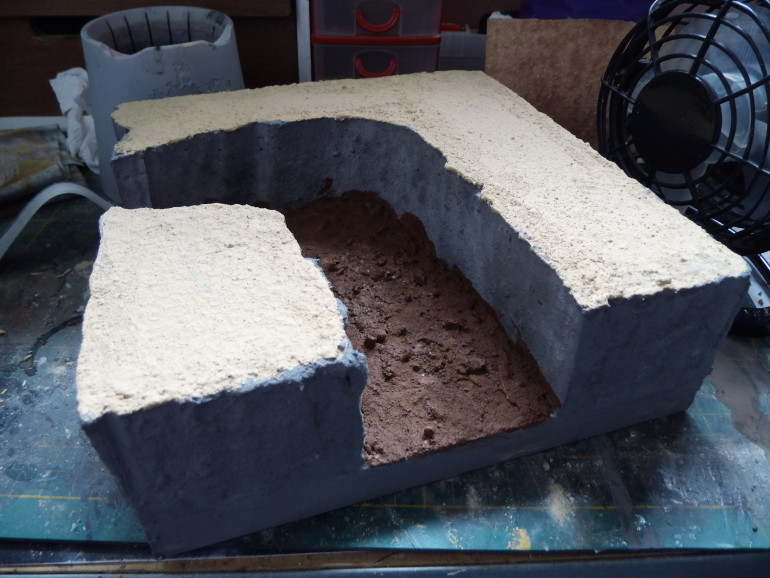

Painted like all the rest I didPainted like all the rest I did
painted the base colors
painted the base colors

Texturing the new tile

Tutoring 1
Skill 2
Idea 3
No Comments

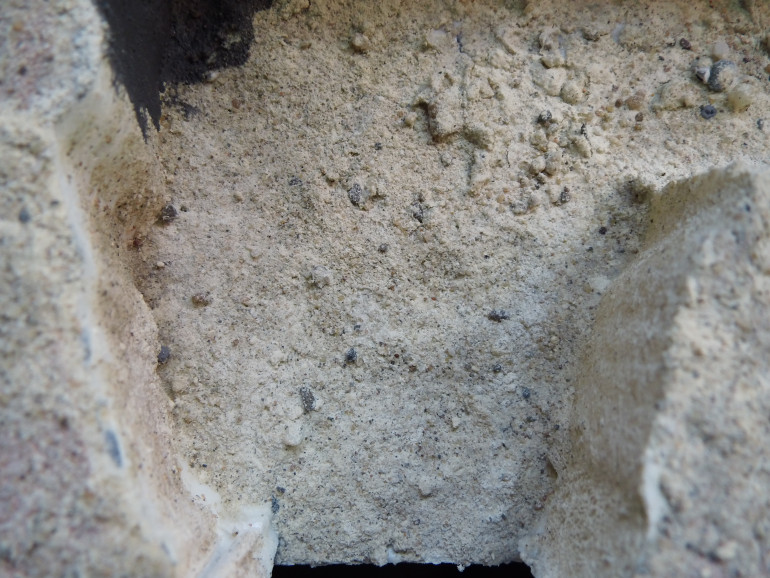

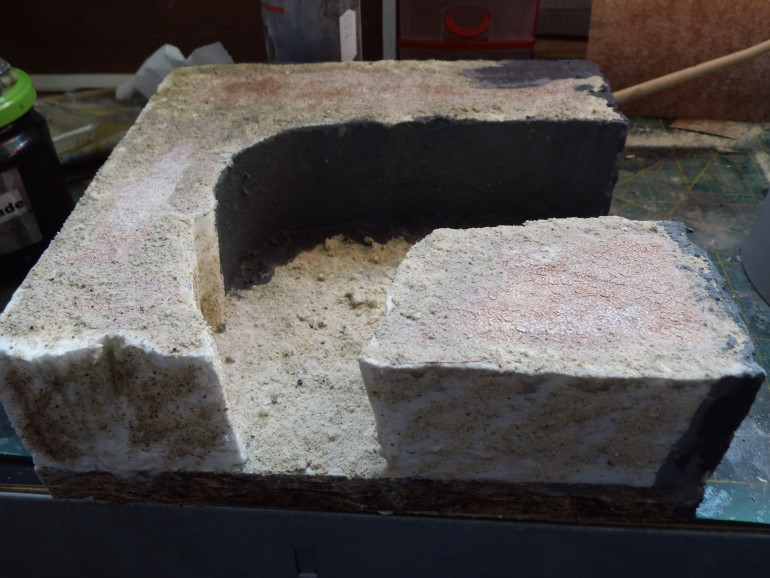

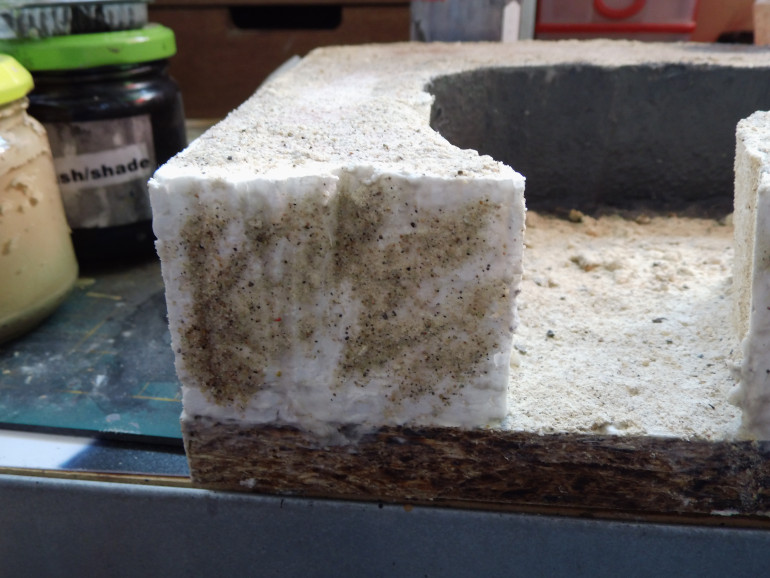

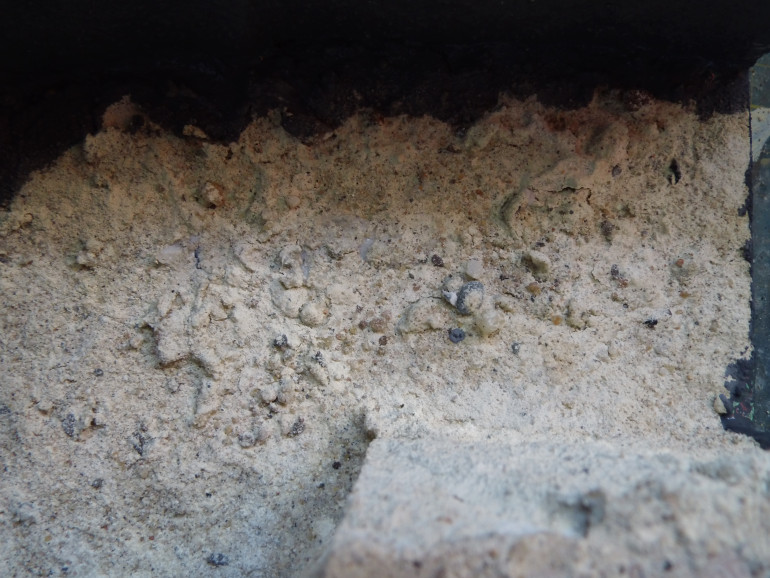

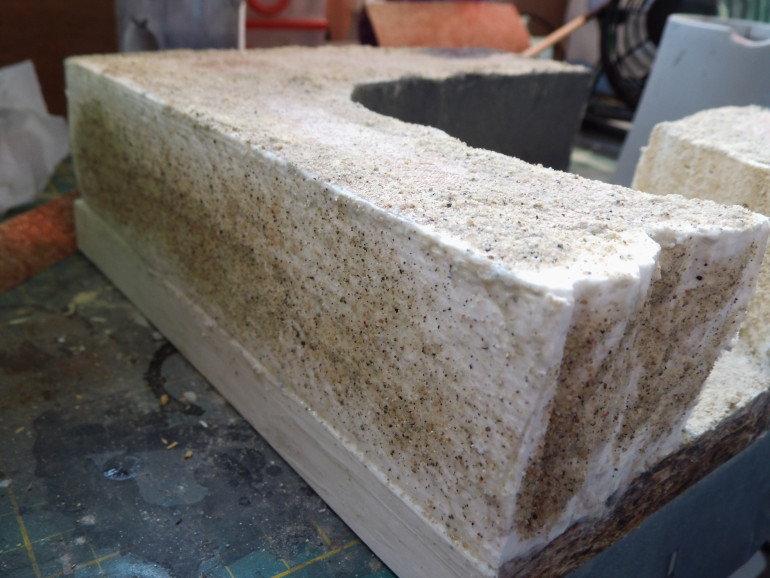

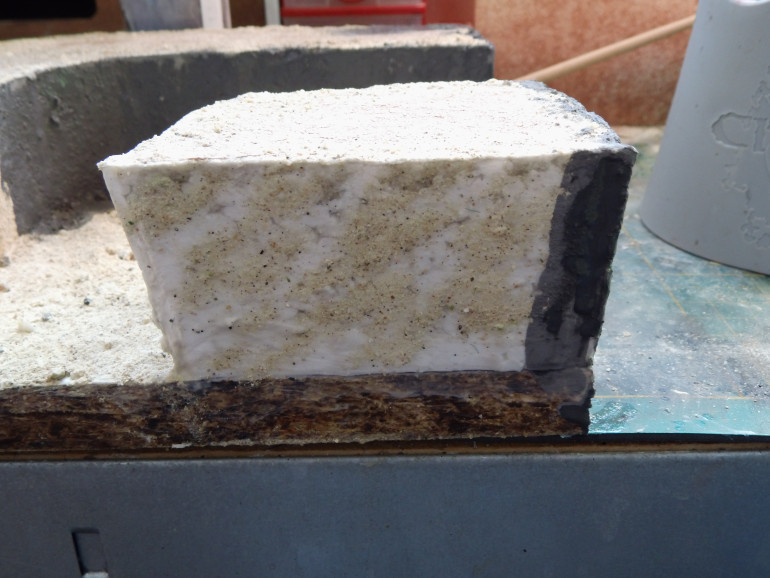

Texturing the new tile

For texture:

The river -> use pva and use a mix of  tile grout-sand-small stones and use a lot of it so I because like a thick mud. Spray with pva-isopropyl and finish off with a spray of just isopropyl.

The side walls -> pva with a mix of sand and tile grout. Then use the sprays above.

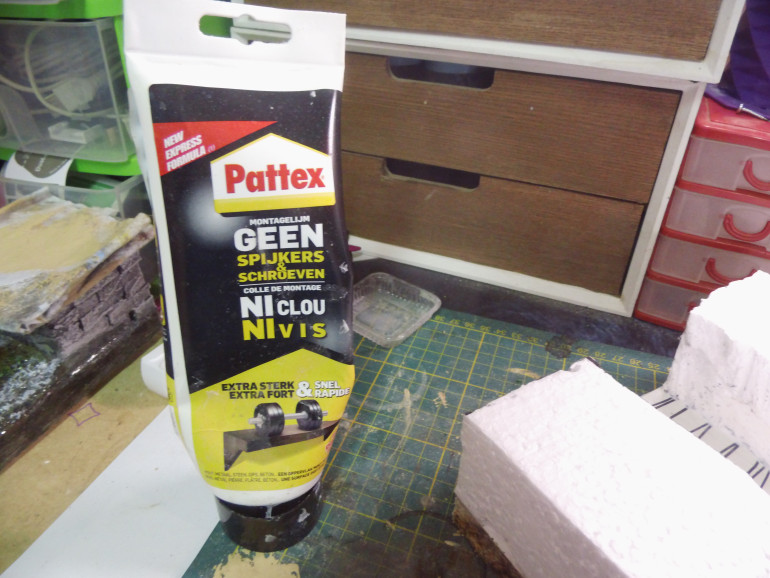

The top -> glue the wall paper down with “No more nails” (this is amazing strong glue that can be used on foam. Hide the wall paper border with “no more nails” and a mix the tile grout and sand. Spray again with sprays above.

Texturing the new tile
Texturing the new tile
Texturing the new tile
Texturing the new tile
Texturing the new tile

New tile recipe

Tutoring 2
Skill 2
Idea 3
No Comments

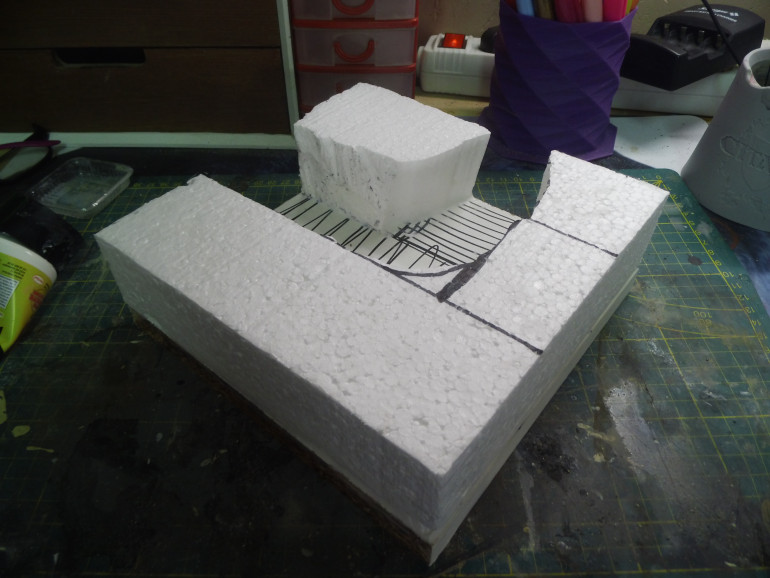

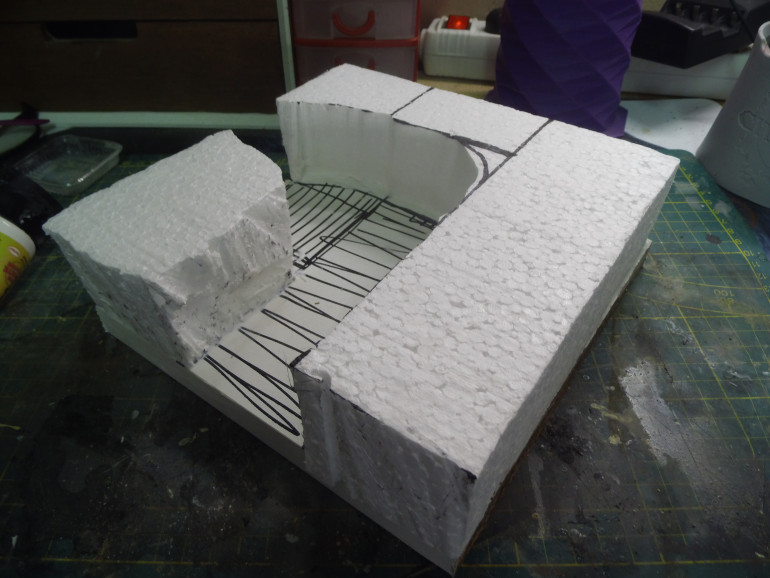

New tile recipe

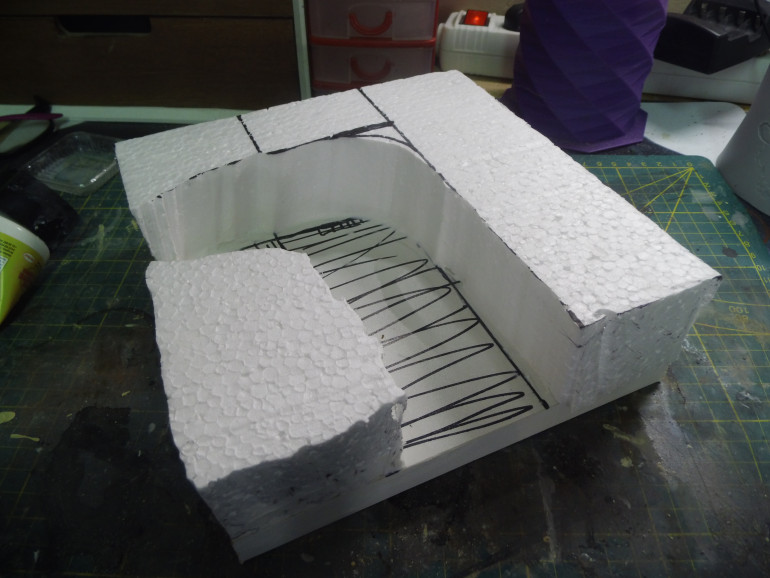

For this tile I am using foam because making the bricks is a hell of work. I only have 3 molds for bricks and I need about 6-7 full molds and its taking to much time. So I create a tile in foam with a river making a turn.

New tile recipe
New tile recipe
New tile recipe

Painted up and finished tile with river section

Tutoring 3
Skill 4
Idea 4
No Comments
Painted up and finished tile with river section

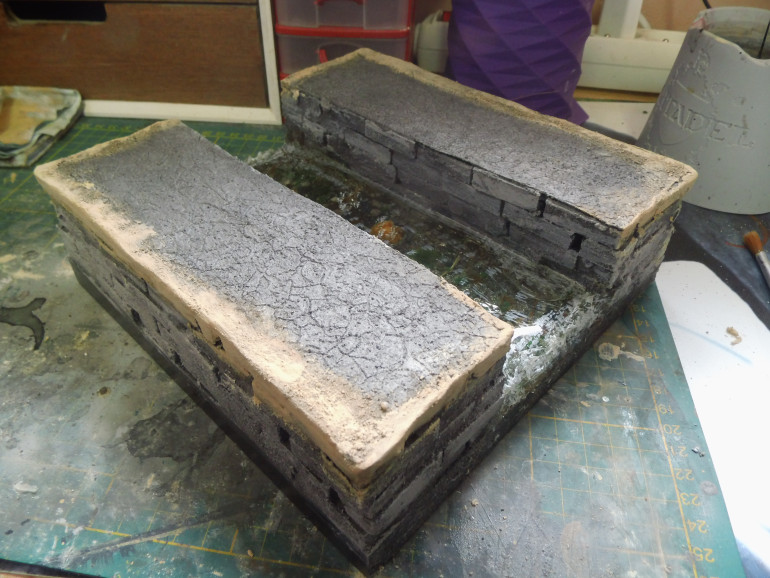

So what I did different here is because its close to the river I chose to do the platform more in a dock like style. But the borders says in the same sand color so when I put them next to each other the blend in. I also used a different wall paper pattern.

Now for the river. I start of by texture it with sand, small stones en tile grout. To make this rock hard: use water downed pva glue first, add the sand, stones and tile grout. Spray it with a 1:1 mix of isopropyl (does not matter 70% or 99,9 %) and water downed pva glue. Then spray it again but just with the iso.

(got this idea from amazing guyes luks aps and the terrain tutor from youtube, be sure to check them out)

I do this before any painting happens.  Next I prime it black. And leave to dry.

For painting:

  1. start off with a base of craft paints brown (use a dark one)
  2. Shade with a home made shade or something like nuln oil or agrax earthshade.
  3. Drybrush with the base color
  4. Drybrush again but with a dark green.

With this all dry I add some small stones with super glue, some tile grout, dark green flock, some static grass etc.. And seal it all down with the sprays you can see above.

When this is all dry. I will make it spectacular with 1,5 cm epoxy resin to create a water effect. To be sure it says on the board I make on both side a border with crystal clear silicon and give the shape off splashing water/ a river. When this is dry, I pour in the resin. Do this from a height to make sure you do not have any air bubbles.

When this is all dry, I added some water markings on the border and resin to replicate movement on the water. This will be done in white paint.



Plans for a tile with river section

Tutoring 2
Skill 3
Idea 4
No Comments

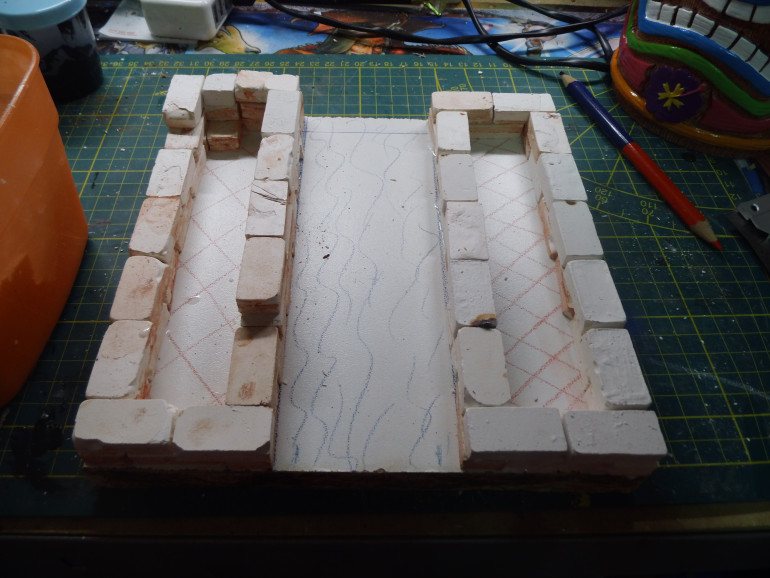

Plans for a tile with river section

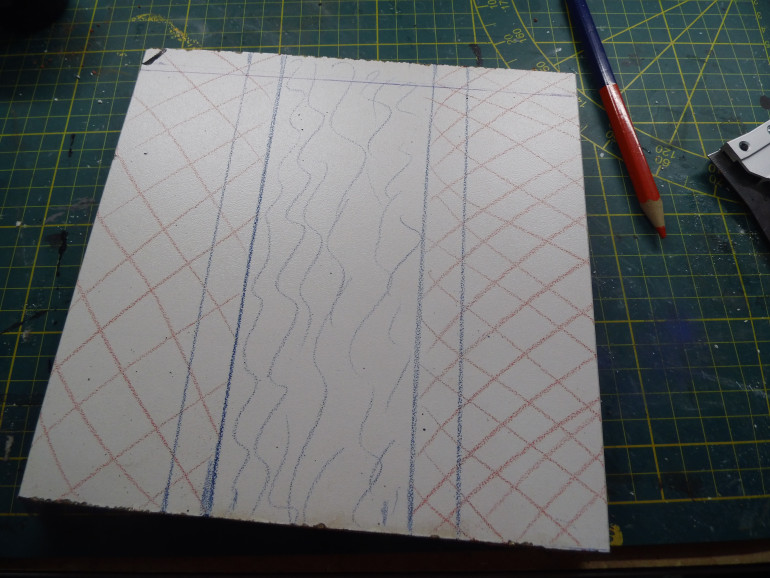

The next tile I made is one with a river section. I start off easy with a straight river. I also think to do the next tile without bricks because I lose a lot off time on this method.

Plans for a tile with river section

Drying bricks

Tutoring 0
Skill 0
Idea 3
No Comments

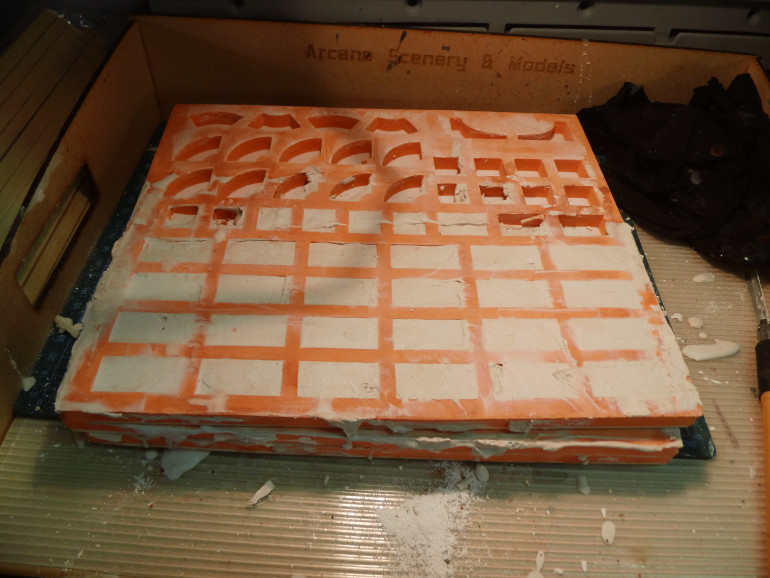

Its a dirty work Its a dirty work
